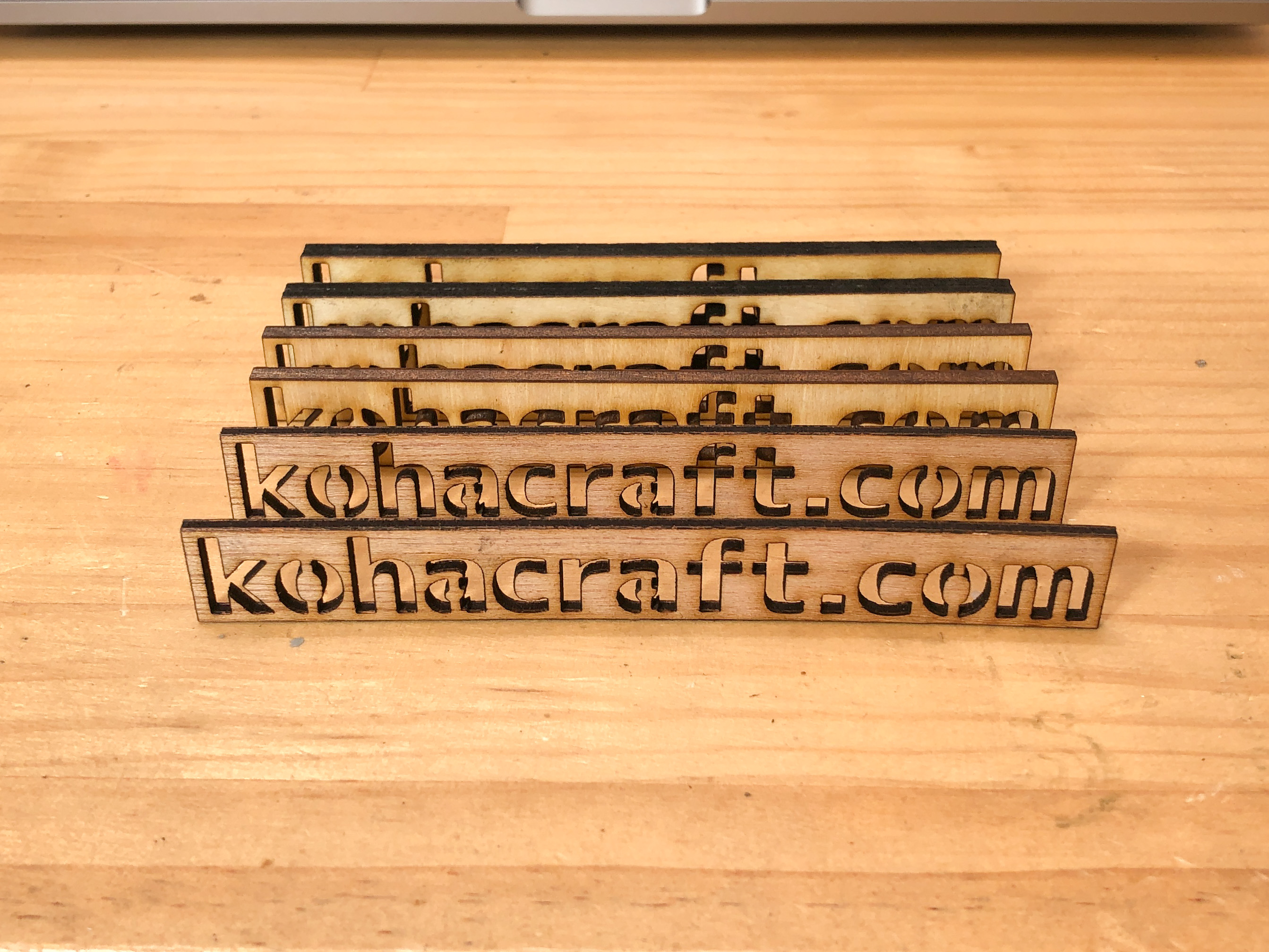

This is a summary of the parameters (conditional settings) for cutting MDF board with EtcherLaserPro, based on actual cutting and research.
MDF 2.5mm thick
Power: 100%
speed:
Can cut just barely 1250mm/min
Can cut cleanly 1000mm/min
speed:
Can cut just barely 1250mm/min
Can cut cleanly 1000mm/min
For a thickness of 2.5 mm, we were able to cut cleanly at 1000 mm/min.
MDF 4 mm thick
Power: 100%
speed:
Can cut just barely 800mm/min
Can cut cleanly 600mm/min
speed:
Can cut just barely 800mm/min
Can cut cleanly 600mm/min
For a thickness of 4 mm, we were able to cut cleanly at 600 mm/min.
MDF 5.5mm thick
Power: 100%
speed:
Can cut just barely 500mm/min
Can cut cleanly 400mm/min
speed:
Can cut just barely 500mm/min
Can cut cleanly 400mm/min
For a thickness of 5.5 mm, we were able to cut cleanly at 400 mm/min.
Summary
Power: 100%
Thickness and speed:
・2.5mm: 1000mm/min
・4mm: 600mm/min
・5.5mm: 400mm/min
Thickness and speed:
・2.5mm: 1000mm/min
・4mm: 600mm/min
・5.5mm: 400mm/min
That's all there is to it.
Imprint
Power: 25%
Speed: 5000mm/min
Speed: 5000mm/min
I was able to imprint something like this.
The above is a survey of the parameters when cutting MDF board with the EtcherLaserPro. た。
2021.1.1 Added: I also checked on the veneer board. た。
End of addition
